Pigment Paste Three Roller Mill

  • Pigment Paste Three Roller Mill
  • Pigment Paste Three Roller Mill
  • Pigment Paste Three Roller Mill
  • Pigment Paste Three Roller Mill

Pigment Paste Three Roller Mill

    Unit Price: 1600~5600 USD
    Min. Order: 1 Set/Sets
    Packaging: Wooden case
    Productivity: 20 - 100 Kg/h
    Brand: Chile
    Transportation: Ocean,Air,Express,Others
    Place of Origin: China,JiangSu,ChangZhou.
    Supply Ability: 30 Sets per month
    Certificate: CE,ISO9001
    HS Code: 8479820090
    Port: Shanghai Port

Basic Info

Model No.: CLGM-260

Product Description

Product Overview

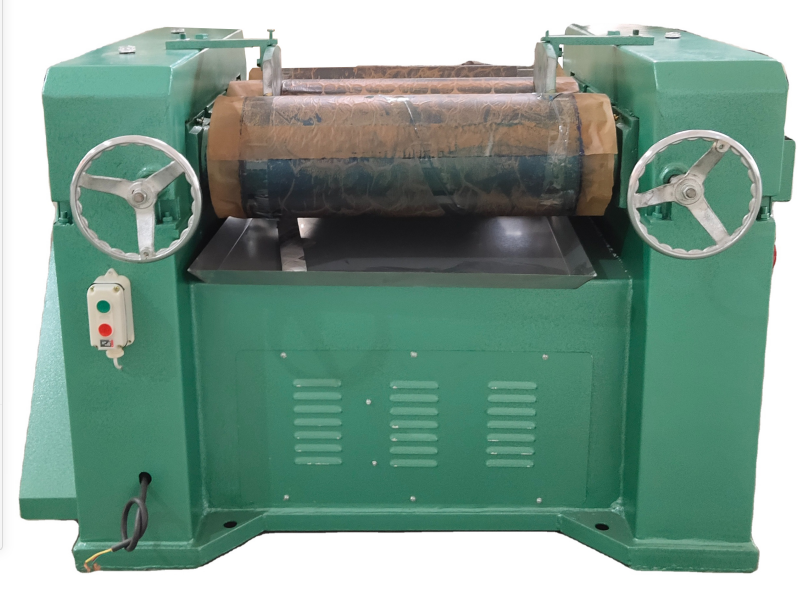

CLGM-260 three-roller machine

High Speed High Viscosity Pigment Or Ink Lab Three Roller Mill With Zirconia Ceramic Roller And Stainless Steel Frame;Chile Lab Three Roller Mill;Three roll mill triple roller milling machine 3 roller mill for paint ink pigment;lab three roll milling equipment 3 roller mill for lab use;Printing ink grinding machine Three roller Mill with 405mm roller diameter;Hot sale 0.75 kw lab three roller mill, ominent three roller mill;100-200kg/h capacity three roller mill for pigment grinding;S65 Lab Roller Mill;Chile Lab Three Roller Mill;

The three-roll grinding machine is mainly used for refining high viscosity materials in various paints, inks, pigments, plastics and other industries. It is especially suitable for processing products with high viscosity and fine particle size. It is one of the equipment with high grinding fineness in the current wet grinding equipment. The friction caused by the mutual extrusion of the surfaces of the three rollers and the different rotating speeds makes the adjacent rollers produce strong shear force to force the materials to be fully dispersed and ground.

FEATURES AT A GLANCE
1. Good fineness of grinding; 2. Manual adjustment of roller clearance, simple and reliable mechanism; 3. Suitable for processing high viscosity materials; 4. The roller clearance is adjustable
PRODUCT SPECIFICATIONS
Item
Three roller mill
Model
CSG260
Roller diameter
Φ260mm
Roller work length
675mm
Roller material
Superior alloy
Roller surface smoothness
≤0.4um
Roller concentricity
<0.5um
Roller bending strength
1250Mpa
Vickers hardness of roller
13.0Gpa
Adjustable range of roller clearance
0-3mm
Roller speed
fast
155r/min
mid
55r/min
slow
19r/min
Main driver powter
7.5kw
Driver voltage
380V/50Hz
Position of voltage
Above the machine
Machine size
1650*1350*1100mm
Why Choose Us
FAQ
Q: Can you give us a quotation right now?
A: Yes,will quotation for you as soon as possible.
Q: Can you give us your price list?
A: Yes ,will show you the more product details in price list.
Q: What is your MOQ?
A: 1 piece/set.
Q: Do you have any one in stock?
A:Sorry, we don’t. Our products are all manufactured according to customers’ requirements. So our products are all different and special.
Q: Do you accept a special order?
A: Yes, we do. We can manufacture all kinds of chemical equipment according to your technical drawings. Before you give them to us, will sign the contract and confidentiality agreement with you. You don’t need to worry about that. Or we can make a design for you according to your requirements. What we supply is not only product, but also solution and design.
Q: Can you give us the technical drawing and data?
A: We will give you the overall dimension drawing for your plan and project. But the detailed drawing and data will be sent you after we signed the contract and confidentiality agreement.
Q: Do you provide after-sales service?
A: Yes, we do. Our product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
Q: Can your engineer come to our place for installation guide?
A: Yes, we can. We will provide a video and document for installation. If you still have problem, we will send our engineer oversea for installation guide.
